ScaleRX Limescale Prevention Systems

ScaleRx can prevent up to 76% of limescale accumulation as shown by independent 3rd party testing. These results are further backed up by multiple case studies conducted in hard water areas.

ScaleRx does not require a filter upstream of installation. In areas where the incoming water contains large amounts of sediment or debris, such as well systems, we recommend using a filter with a minimum of 50 microns to remove large particles upstream of your plumbing system.

Yes, ScaleRx is used in the hardest water regions in the US and Canada, including Texas, Southern California, the Great Lakes region and Alberta. ScaleRx is up to 76% effective in all hard water areas.

No, ScaleRx will not void any warranties on equipment.  It meets the requirements of warranties that stipulate using a scale prevention device.

While ScaleRx is a limescale prevention system and not a descaler, it can remove some pre-existing scale deposits over time.

Yes. ScaleRx is certified by IAPMO R&T to NSF/ANSI/CAN 61 & 372, making ScaleRx safe for use in any drinking water system.

Although uncommon in residential or commercial water systems, if treated water is left stagnant for extended periods of time it is possible for aragonite to reform as calcite.

Aragonite is a small, powdery crystalline structure of calcium carbonate. It stays suspended in water and does not bond onto pipes or heating elements. Aragonite is eventually flushed out of the system as water is used.

Aragonite is a different crystalline structure of calcium carbonate. While chemically the same as calcite, aragonite stays suspended in water and does not bond onto pipes or heating elements.

Water containing high levels of dissolved calcium or magnesium carbonate leaves calcite deposits commonly known as “limescale” or “scale” on plumbing components. These deposits restrict flow, prevent heat transfer, and cause corrosion.

Limescale formation:

• Restricts flow
• Slows transfer of heat
• Decreases efficiency
• Damages heating elements
• Decreases water pressure
• Shortens appliance life span
• Requires frequent and costly maintenance
• Leaves unsightly deposits on clothes and dishes
• Increases energy bills

Over 85% of America has hard water. Limescale accumulation blocks heat transfer, causes corrosion, and contributes to premature failure of expensive appliances and equipment. ScaleRx effectively inhibits the formation of limescale deposits and is suitable for a wide range of equipment handling moderate to severe hard water.

ScaleRx prevents limescale from forming by causing calcium carbonate to form as aragonite instead of calcite (limescale), it does not chemically alter the water and does not use salt or other chemicals. ScaleRx requires no maintenance, filters or power sources and lasts up to 12 years.

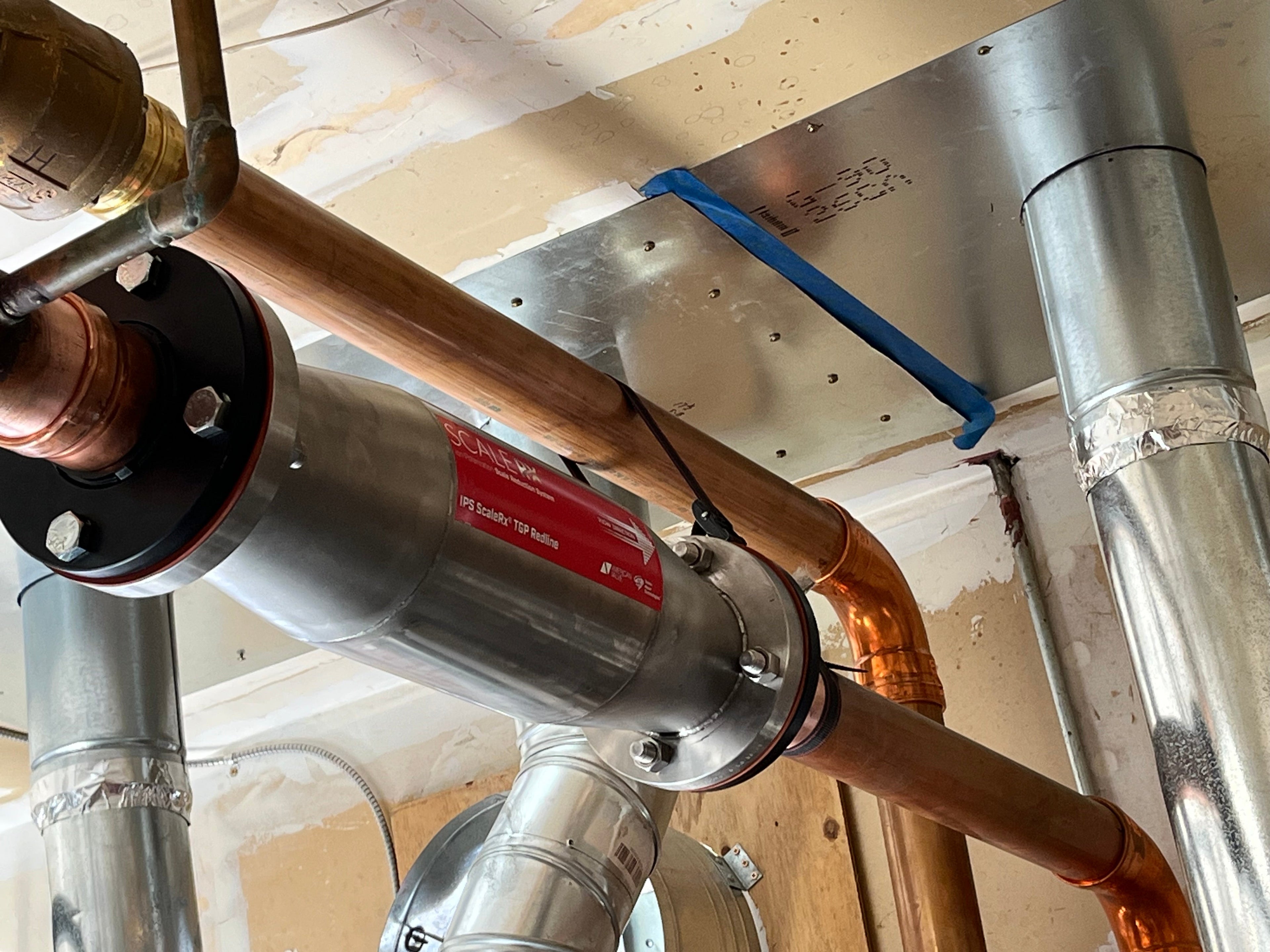

ScaleRx can be installed either directly onto your water heater or other appliance, or on the main water line upstream of your appliance.

ScaleRx can be installed on any tank or tankless water heater and connects directly to any ¾” Male NPT Copper, PEX, PVC or CPVC pipe. Testing conducted by IAPMO R&T shows ScaleRx to be 76% effective at preventing limescale deposits on copper heating elements. In side-by-side comparison testing it was 4 times more effective than the leading electronic scale reduction device.

ScaleRx:

• Prevents up to 76% of limescale buildup in equipment and water systems
• Extends the life and efficiency of equipment
• Is certified by IAPMO R&T to drinking water standards NSF/ANSI/CAN 61 & 372
• Requires no filters, power source, or maintenance
• Acts as a limescale-caused corrosion inhibitor

Traditional water softeners are labor-intensive and time consuming. They require salt, resin beads, circulating water, backflushing, and cleaning in order to chemically alter water. On the other hand, ScaleRx prevents the formation of limescale crystals without water treatment chemicals, filters, or labor. For facilities managers and homeowners alike, the return on investment with ScaleRx as compared to a traditional water softening system is night and day. ScaleRx is truly a “set it and forget it” solution to prevent mineral scale deposits.

ScaleRx can be installed either directly onto your water heater or other appliance, or on the main water line upstream of your appliances.

ScaleRx contains no filters and is maintenance-free. The body is made of 304 stainless steel, and testing has shown that ScaleRx remains effective after 12 years of constant use with a residential water heater.

Certainly! The outside components are made of durable stainless steel and made to survive harsh environments. ScaleRx Whole Home comes with optional SharkBite™ fittings which are not rated for outdoor use. ScaleRx can also be buried, although it is not the recommended installation method.

ScaleRx is compatible with hard copper (types L, K and M), PEX, HDPE, PE-RT, CPVC, or and PVC pipe. Brass or plastic adapters may be connected directly to ScaleRx.

ScaleRx contains patented TGP® turbines that create both turbulence and a small galvanic current. These features combine to prevent the formation of calcite crystals. Scale inhibition with ScaleRx keeps your water heater and other equipment free from scale build up.

ScaleRx ¾” has a maximum flow rate of 14.1 GPM, while 1” units flow up to 17.6 GPM and have a maximum pressure drop of less than 1 PSI.
